The benefits of a guardian roof.
Transform your conservatory into an ambient, much loved space that can be used daily, all year round.
Key Features.
The Guardian™ Warm Roof Conversion System has been designed to provide a high performance thermal and structural solution with zero condensation risk over the life of the roof.
Rapid Installation.
Installed by one of our Team Guardian Registered Installers, the whole conservatory roof installation only takes a few days and is completed with minimum disruption to your home.
Energy Efficient.
The high performance insulation achieves a superior U-value of only 0.18 W/m.K (England and Wales) and 0.15 W/m.K (Scotland). Saving you money on your heating bills.
Temperature Control.
A Guardian Warm Roof regulates the temperature of your conservatory to ensure that it’s pleasant and comfortable all year round.
Engineered for Quality.
Engineered precisely to your individual requirements and pre-assembled under controlled factory conditions to ensure the highest quality.
Reduces Noise & Sun Glare.
Your new room will remain quiet and relaxing whatever the weather conditions. Even heavy rain noise is eliminated.
A living space you can enjoy whatever the weather.
New living space in just a few days.
The Guardian Roof System is designed to be of similar weight to a glass roof of equal size, so it follows the existing glazed walls. If correctly specified for the original glazed roof, it should be capable of supporting the replacement Guardian Roof System.

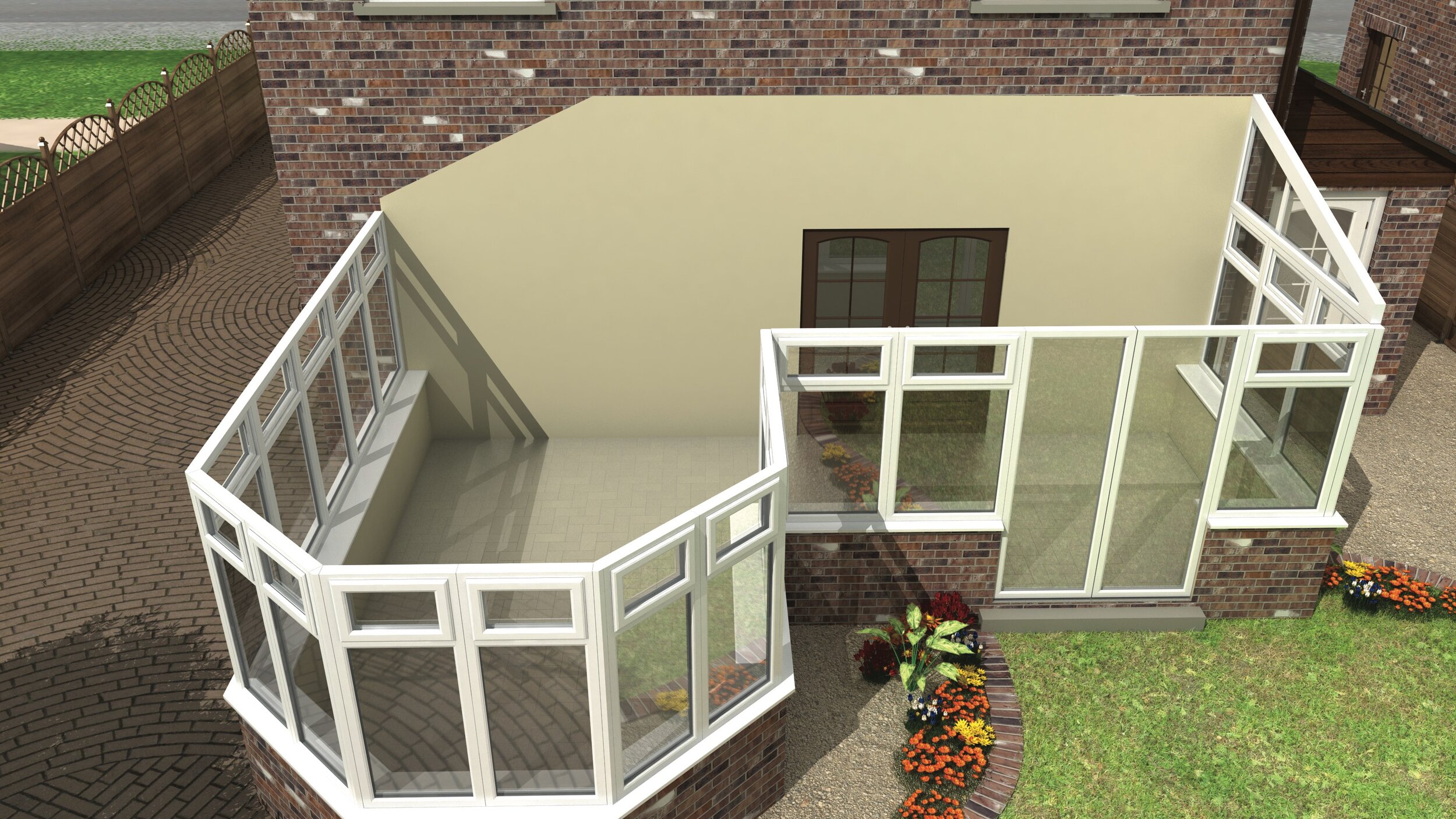

Removal of entire existing roof and installation of Guardian structural frame.

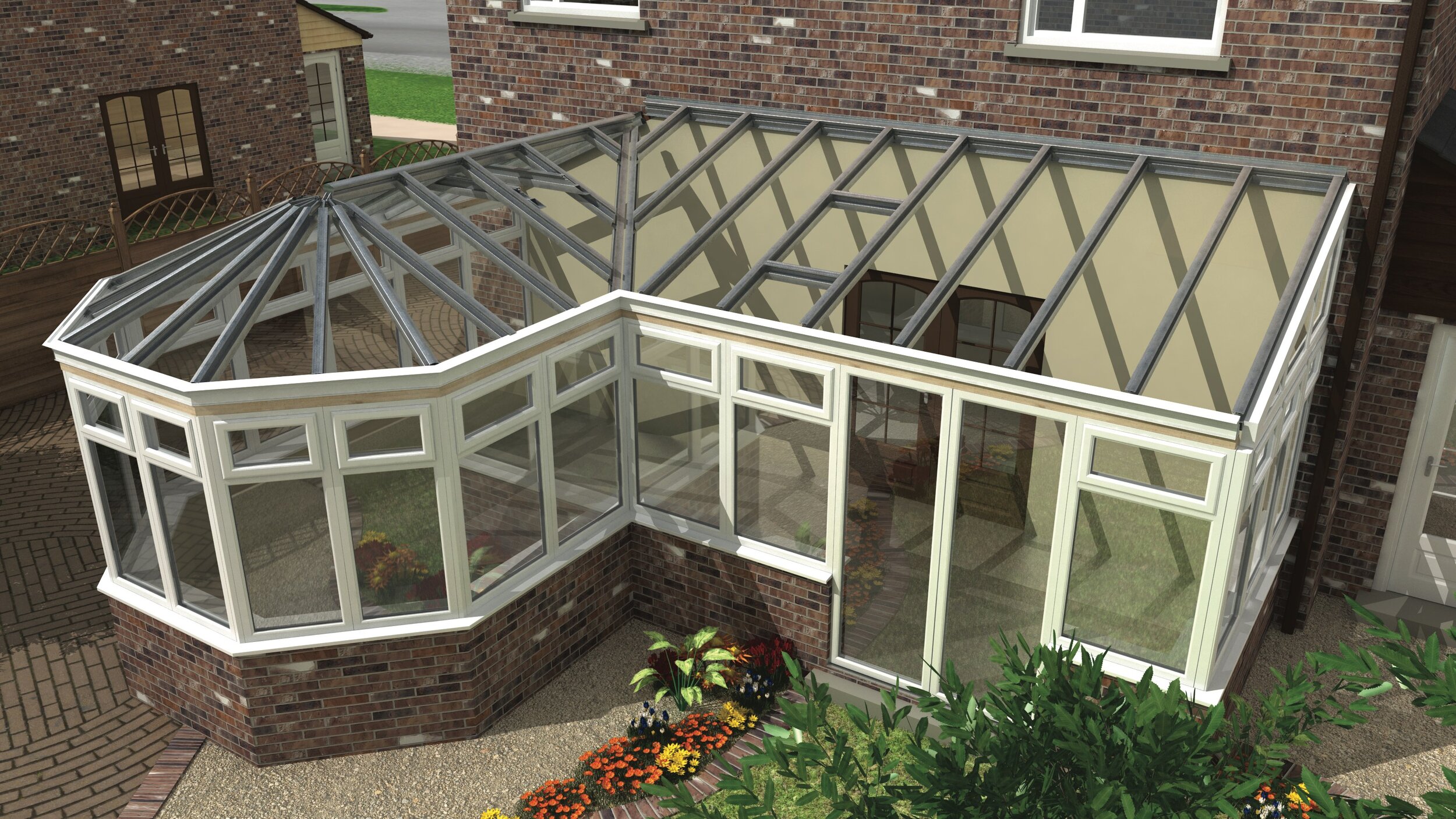

Aluminium rafters, ridges and wall plates are fitted.

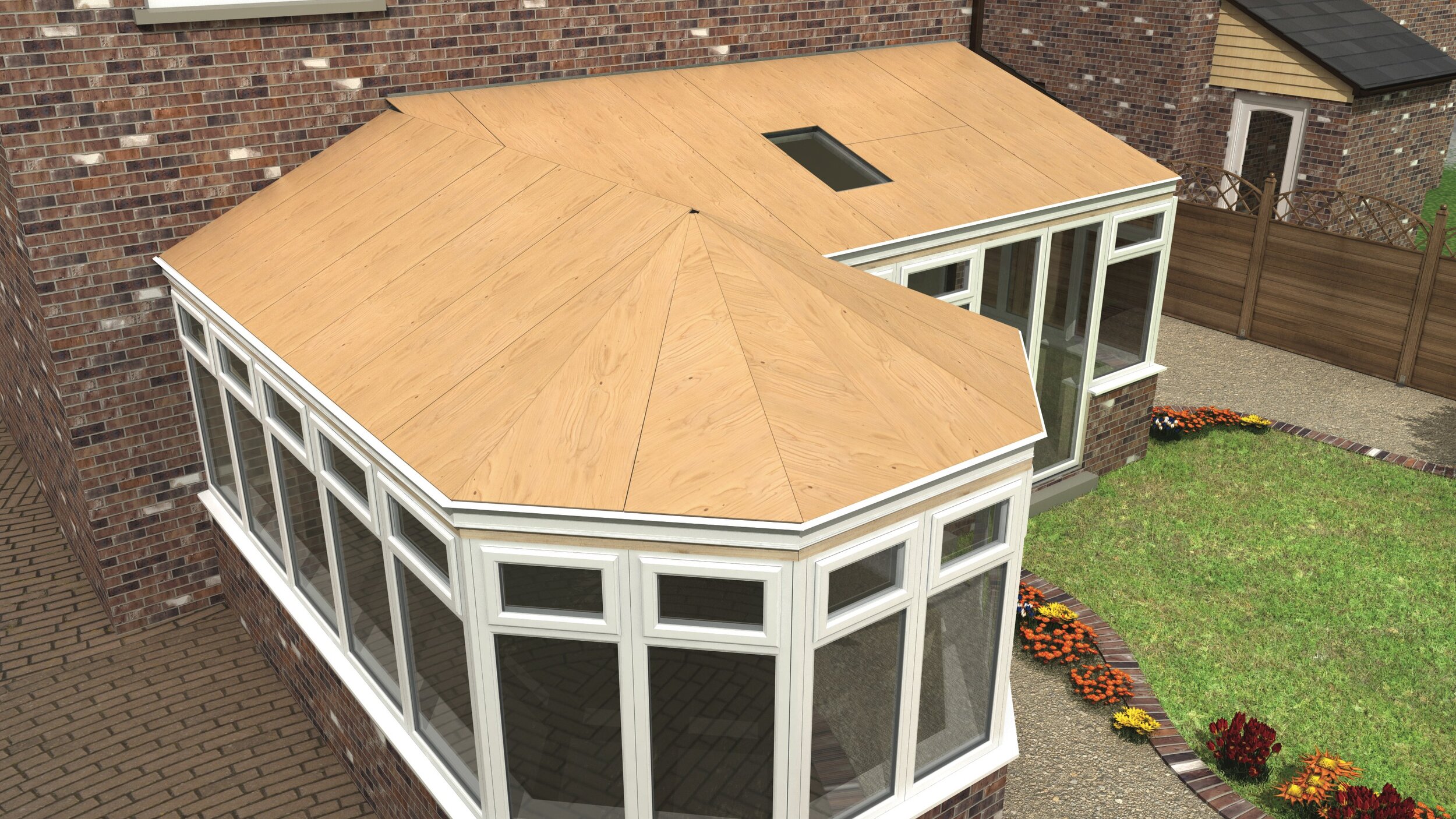

Exterior grade ply-board is fixed to the rafters.

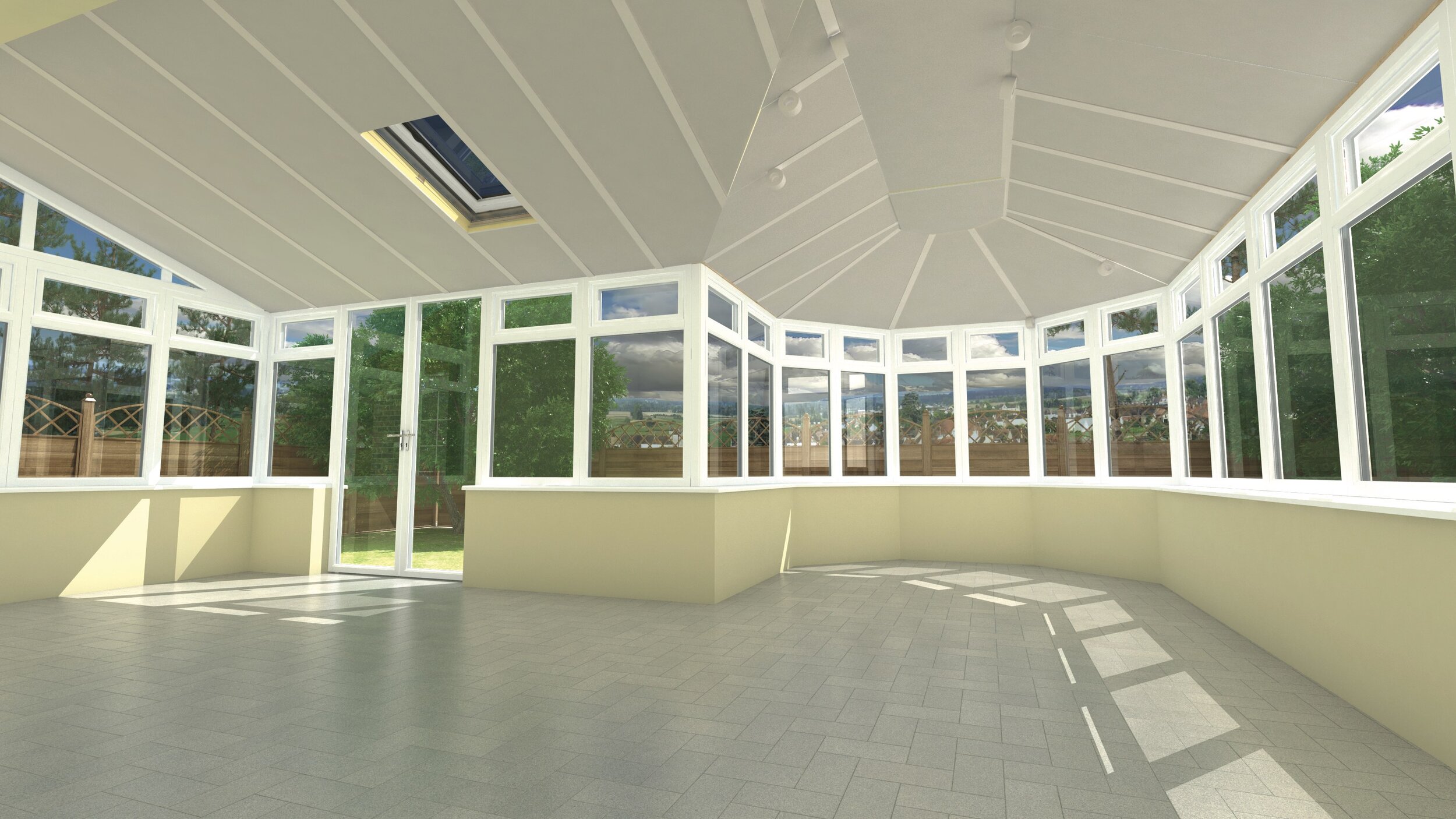

Internal fit-out of high performance insulation and plasterboard
Breathable waterproof membrane is laid over the plywood and secured in place.
Chosen tile is added ensuring weather tightness and the gutter and external trim are secured in place.
“With Building Control approval, internal dividing doors or walls can be removed to provide an open-plan living space.”
Engineered for quality.
With planning consent, internal dividing doors or walls can be removed to provide a permanent extension to give you additional ground floor living space.
1 - Ridge Cappings.
Ridge cappings to match roof tiles or slates.
5 - Ply-wood.
Exterior grade plywood.
2 - Roof Tiles or Slates.
Choice of roof tiles or slates in a range of colours.
6 - Aluminium Frame.
Structural pre-engineered frame.
3 - Gutter System.
Standard rainwater
system.
7 - Ventilation.
Ventilated roof eliminates condensation and mould growth.
4 - Membrane.
Breathable waterproof membrane.
8 - Insulation Board.
3 layers of high performance rigid insulation board (125mm).

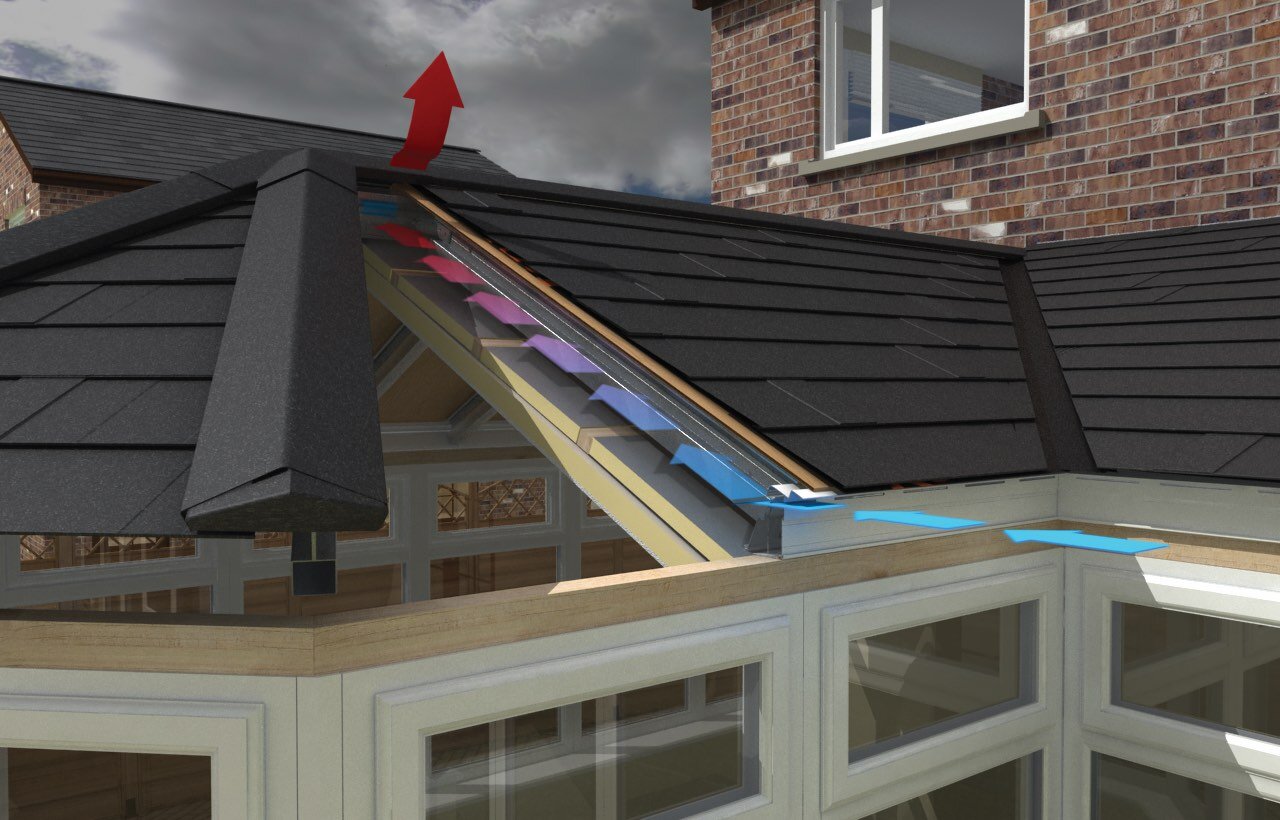

Built-In ventilation
With many unproven roof conversions, moisture can form inside the roof causing staining and mould growth to the internal plasterboard, leading to deterioration or even failure of the roof components. Guardian Roof is a ventilated roof, slots in the ring beam allow air circulation through the eaves.
In compliance with LABC / LABSS, the Guardian Roof is a ventilated roof. Slots in the ring and ridge beams allow air to flow freely through the roof thereby avoiding condensation and allowing any moisture to exit.
With many unproven roof conversions, moisture can form inside the roof causing staining and mould growth to the internal plasterboard, leading to deterioration or even failure of the roof components.
Building control approval for your peace of mind.
Under certain criteria, the Guardian Warm Roof System would be exempt from Building Control approval – however, we strongly recommend that approval always be sought.
But, as the Guardian Warm Roof System carries LABC /LABSS certification, the Building Control process should proceed faster, smoother and without complication.
Due to the high performance insulation and with Building Control approval, the Guardian Warm Roof System, may allow the removal of the wall between the house and conservatory, providing the flexibility to extend and enlarge an existing kitchen, living room or bedroom..
“We couldn’t really afford an extension but we wanted a conservatory that we could enjoy all year round, so when we heard about the Guardian Conservatory – it was an easy decision. One month later, I can only say that it’s given us the perfect room. Light, airy, quiet and comfortable.”
The south west & wales premier roof manufacturer for over 20 years.
Located in Bristol with over 20 years in operation, PGRL have built a commendable track record for the design, fabrication and of high quality, aesthetically pleasing conservatory roofs.
Owned and operated on a day-to-day basis by David Collier and Darren Adcock who have many years’ experience and understanding of the industry, PGRL are the local experts you can rely on.
